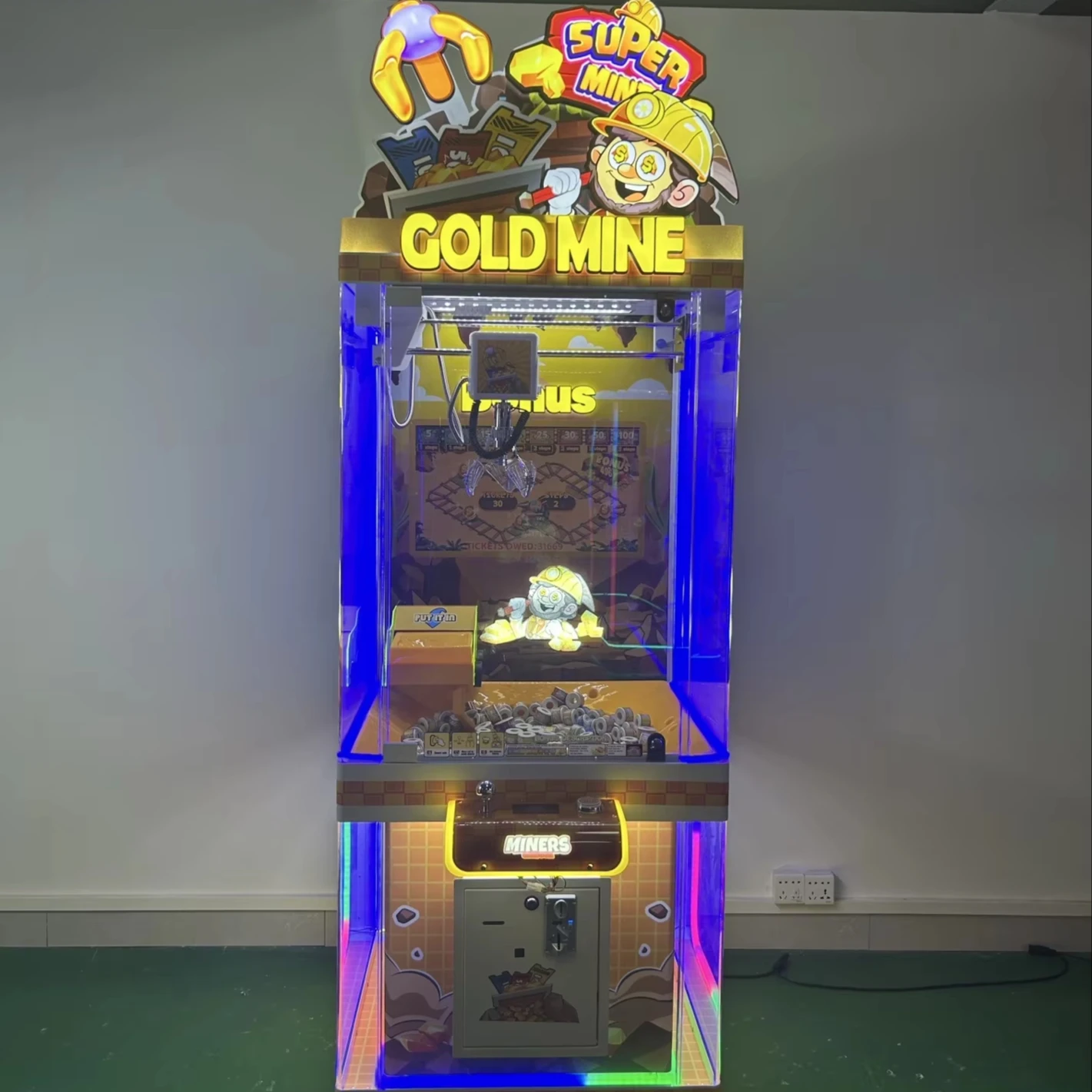

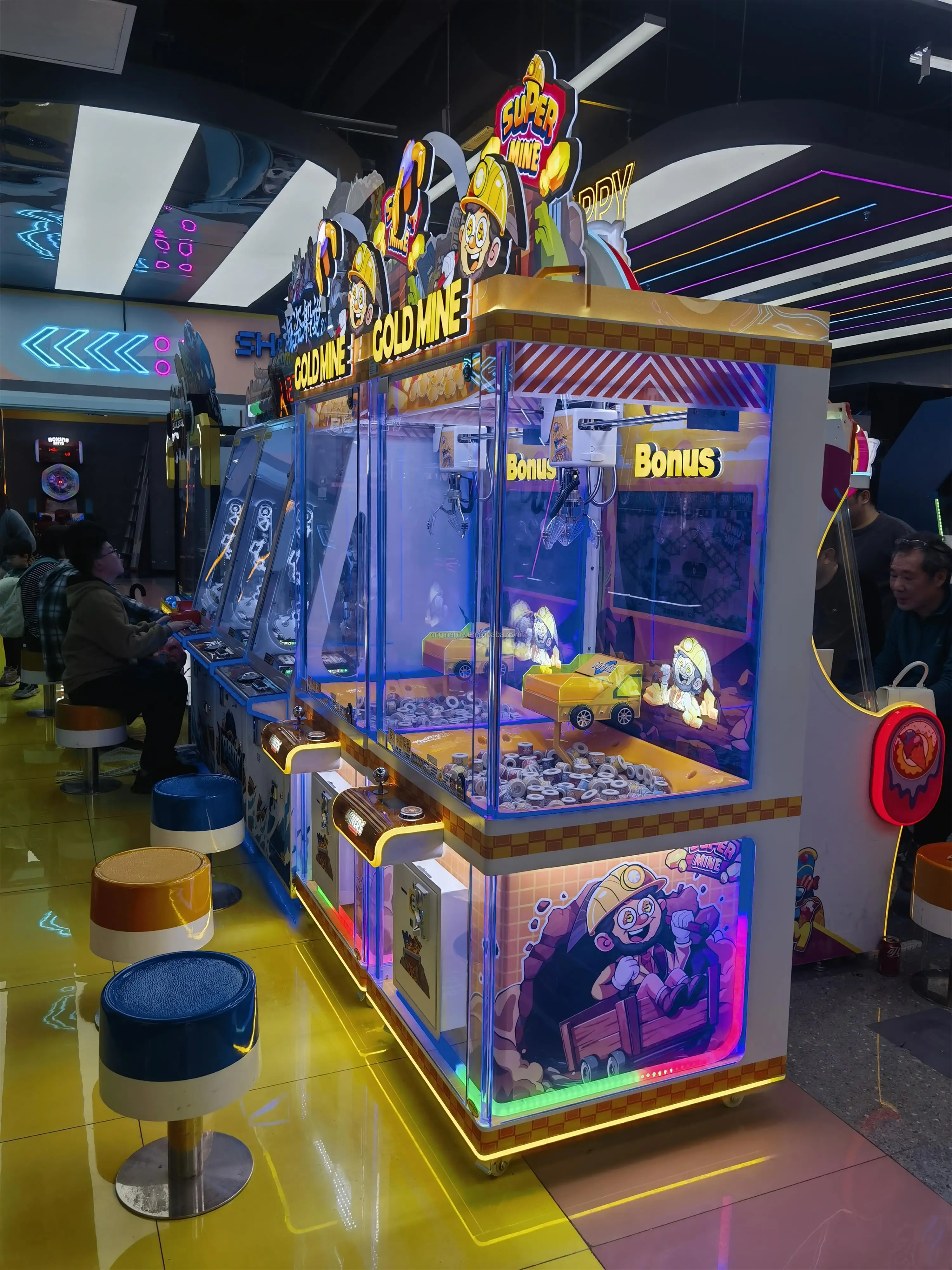

Gold Mine

Generic

tickets1 Player Per Station

No UCL Connector

No UCL connector present. Compatible with card system but requires Tigapo credit/ticket harness.

4.7k pull-up resistor required on ticket enable pin. Manufacturer has optional UCL harness available at customer request.

Tigapo Installation

Mount Location: Coin door

Coin comparator bracket compatible

Wiring

Non-standard ticket connector

Credit Input

Interface:pulse

Ticket Output

Dispensers: 1

Model: Chinese

Connector:other

Tx enable pull-up: 4.7k

Chinese OEM coin and ticket mechs with no standard UCL or Deltronics connector. UCL harness must be requested directly from manufacturer at time of order — not included by default. Verify pin-out on received harnesses before installation; some units have shipped with swapped pins. Middle two wires of game ticket connector are power. Outer two are for tickets: white = ticket enable, green = ticket notch.

Dimensions

Width

31.5"

2'8"

Depth

39.4"

3'4"

Height

96.1"

8'1"

Power

110V600W

220V350W

Connector: NEMA 5-15

Notes

Generic Chinese OEM model. UCL harness available from manufacturer on request.
